LibCap
Automated Library Preparation/Capture Workstation
The LibCap Automated Library Preparation/Capture Workstation is a dedicated system for NGS (Next-Generation Sequencing) targeted sequencing. It supports multiple experimental workflows including library construction, hybridization capture, and multiplex PCR, significantly reducing laboratory labor costs while enhancing experimental stability and performance.
Product Introduction
The LibCap Automated Library Preparation/Capture Workstation is a
dedicated automated workstation for NGS (Next-Generation Sequencing)
targeted sequencing. It can implement various experimental workflows
such as library construction, hybridization capture, or multiplex PCR,
significantly saving laboratory manpower while improving experimental
stability and performance.
Product Features
Saves manpower and time
One-click automatic operation for complexlibrary construction, capture, or multiplex PCR processes. After placing the nucleic acid/ribonuclease system, no further manual intervention is required, reducing 90% of manual workload and experimental operation time for batch samples.
Excellent performance
Automated operation avoids manual errors, reducing experimental fluctuations by more than 60%. The 8-module system ensures stable experimental results and excellent performance, with capture performance superior to manual operation.
Integrated functions
Integrated design, equipped with a rapid PCR module, multi-zone magnetic purification system, camera archiving system, multi-temperature zone reagent storage system, seal system with replaceable thermal lid, ultraviolet sterilization system, and negative pressure HEPA filtration system.
Flexible and fast
Supports processing of any 1 to 16 samples. The two zones, each with 8 independent channels, operate without interference. A single instrument can complete different experimental processes such as library construction, capture, or multiplex PCR. The modular design of the experiment allows specified step skipping.
Product Functions
Library Construction
Hybridization Capture
Multiplex PCR
Application Areas
Tumor / Cancer
Tumor Panel Sequencing
Infection
mNGS/Capture Metagenomics/tNGS
Genetic Disease
Genetic Disease Panel Sequencing
Others
Big Health/Agricultural Breeding
Performance Parameters
| Pipette | Types of Pipettes | 8-Channel Fixed Tip Spacing Pipette | |
| Pipetting Volume Range | 10μL-200μL | ||
| Pipetting Accuracy | 10μL±5.0% | 200μL±1.0% | |
| PCR Instrument | Temperature Range | 0-99°C | |
| Temperature Accuracy | ±0.2°C at 20°C/30°C | ±0.2-0.5°C at 55°C/72°C | |
| Temperature Control Module | Temperature Range | 4-85°C | |
| Temperature Accuracy | ±0.5°C at 55°C/65°C | ||
| Positioning Accuracy of Robotic Arm | ±0.1mm | ||
| Air Purification System | Negative Pressure HEPA Filtration | ||
| Working Environment | Temperature Requirements | 15°C-30°C | |
| Relative Humidity | 20%RH - 80%RH, No Condensation | ||
| Barometric Pressure Range | 85-105kPa | ||
| Power Supply Requirements | 100-240V, 50/60HZ, 2000VA | ||
| Size | Width 945mm × Depth 528mm × Height 500mm | ||
| Product Weight | 100kg | ||

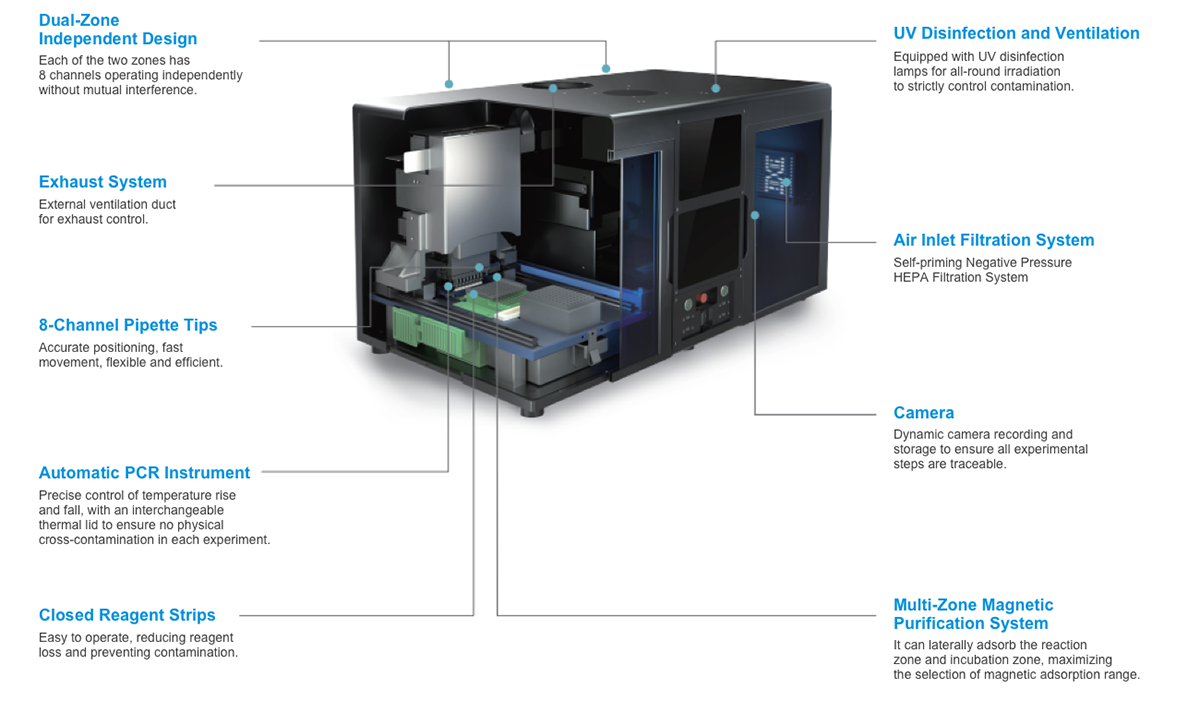

Functional Modules

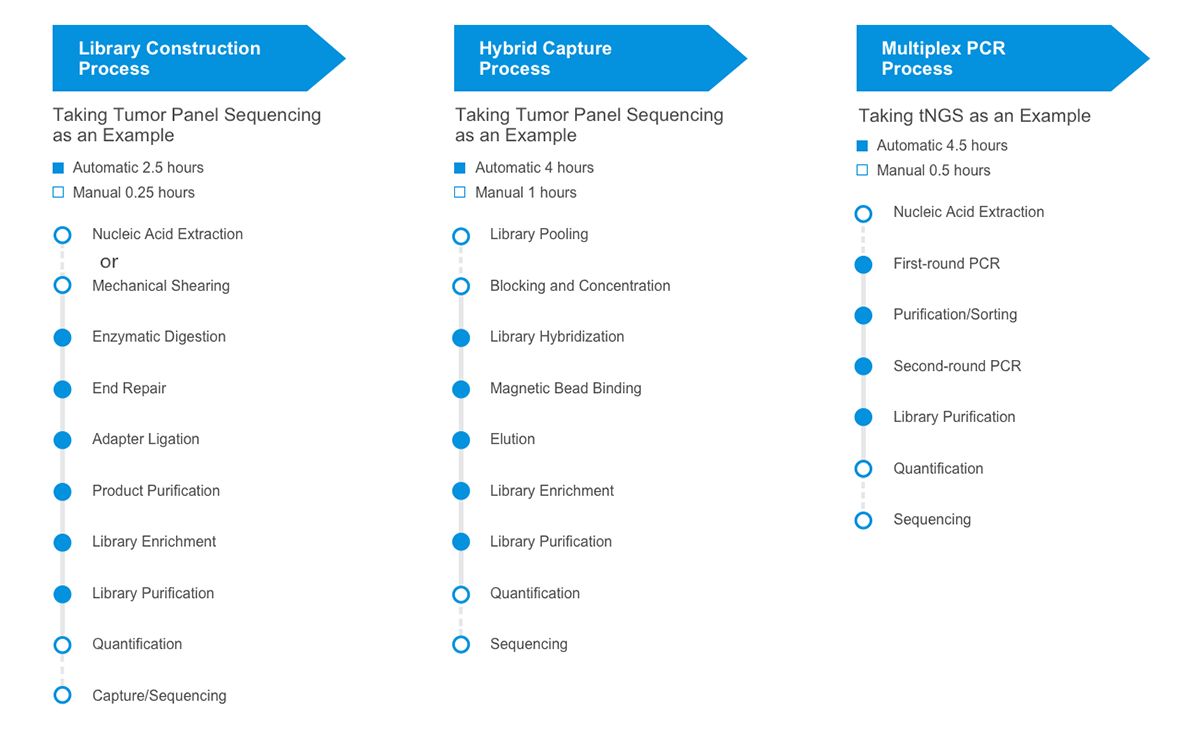

Operation Process
Relevant Product Recommendation

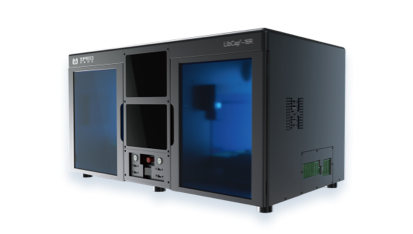

LibCap Automated Library Preparation/Capture Workstation

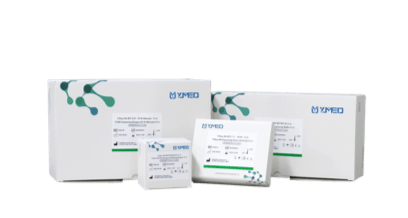

YJSeq 300 High-Throughput Sequencing Kit Set

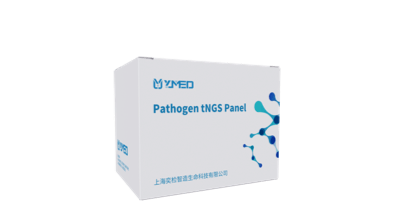

Pathogen tNGS Panel

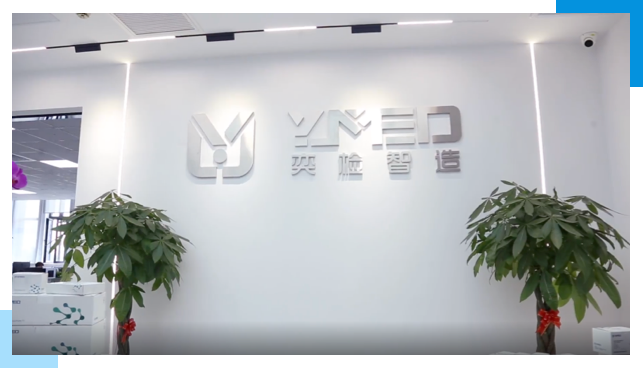

About YJMED
